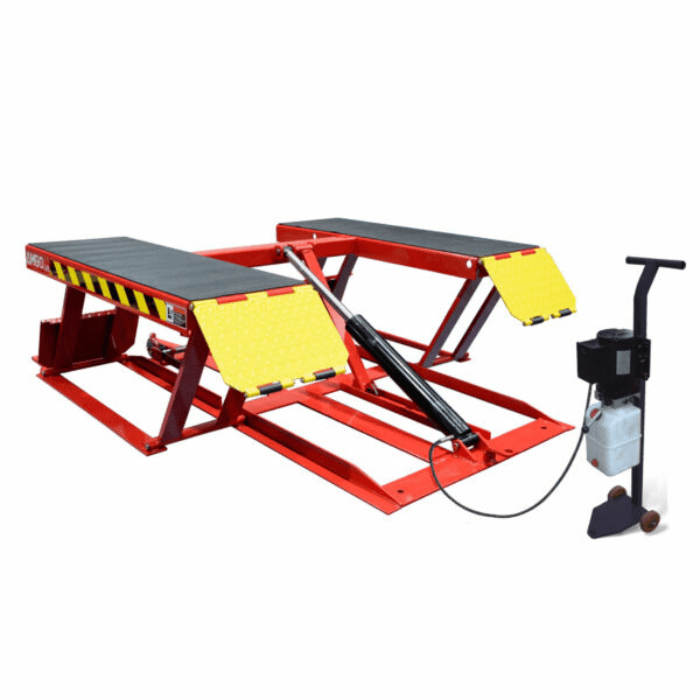

Big Performance, Tiny Footprint. AMGO LR06 6,000 lb Portable Low-Rise Scissor Lift
Buying a vehicle scissor lift can feel like navigating a maze: you worry about ceiling height, portability, and safety locks that don’t lock. Too often you end up with bulky, stationary lifts that hog space and need extra hands to move. The AMGO LR06 Portable Low-Rise Scissor Lift fixes that by packing a 6,000 lb capacity into a slim platform only 4 1⁄8″ tall when lowered. It slides under low-clearance vehicles and reaches its full 24 3⁄16″ working height in just 56 seconds. Low-rise portable scissor lifts solve a specific problem: brake work, tire rotations, and quick undercar access where you don’t need (or can’t fit) a full-rise lift. The LR06’s 24-inch max lift height is enough for ergonomic brake and tire work.
The patented caster-mounted power-unit stand turns this 827 lb lift into true one-person portable equipment: roll it where you need it, plug into any 110 V outlet, and go. Multiple mechanical safety locks engage automatically, and a single gravitational release lever lowers the vehicle smoothly and safely. Four high-density 1 ½″ rubber pads protect frames and pinch-welds on every lift. Portable design with included casters lets you roll the lift between bays, into a side garage, or out to a customer’s location. The 6,000 lb capacity covers passenger cars, mid-size SUVs, and small light trucks.
Whether you operate seasonal overflow bays, pop-up service stations, or a space-constrained home garage, the LR06 delivers professional results without permanent floor anchors or ceiling-height headaches. It’s the dependable, space-saving car scissor lift your workflow has been missing. For shops handling high-volume brake or tire work, mobile service operations, or DIYers needing occasional under-vehicle access, the LR06 is the right tool for the job without overspending on full-rise capability.
Need a different lift style? Compare all vehicle scissor lifts, browse the full Car Lifts collection, or see everything from AMGO. Questions? Call (470) 208-2754.
Benefits of the AMGO LR06 Low-Rise Lift
Key Features of the AMGO LR06 6,000 lb Portable Low-Rise Scissor Lift You’ll Love:
- 6,000 lb lifting capacity in a slim, low-profile chassis.
- Portable, newly designed dolly for effortless movement between bays.
- Rugged platform and hard-rubber lifting pad guarantee stable, quick lifting.
- Dual-approach ramps for maximum space efficiency.
- Mechanical locks with multiple lock points and an automatic gravitational lock-release mechanism.

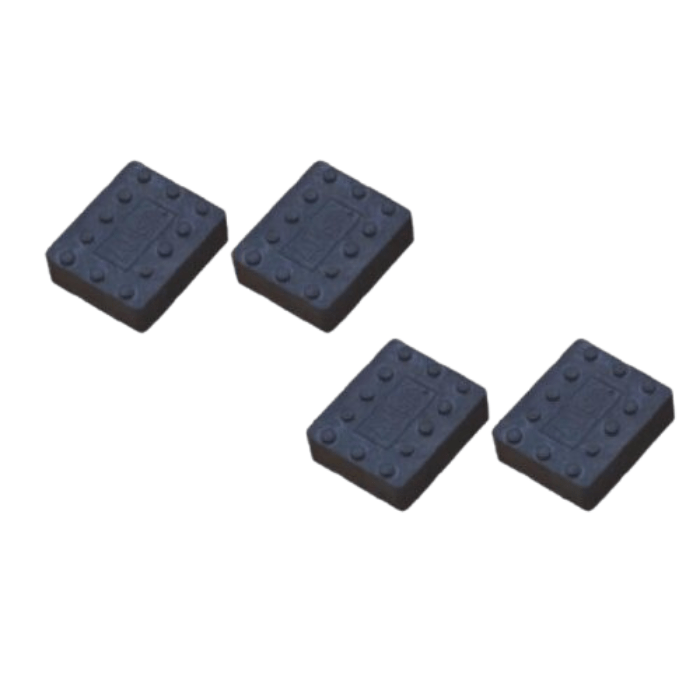

- 1½″ rubber pads come standard.
- Versatile low-profile platform handles everything from standard cars to low-clearance vehicles.
- ETL certified AMGO power unit for verified safety compliance.
- Exclusively designed detachable power-unit stand with manual safety release device.
Minimum Garage Requirements
✔ Max Lift Height: 24 3/16″ (2’0″) ✔ Lowered Height: 4 1/8″ drive-on clearance ✔ Platform Dimensions: 57 3/16″ L x 70 1/16″ W ✔ Overall Dimensions (raised): 84 1/16″ L x 70 1/16″ W (7’0″ x 5’10”) ✔ Concrete Thickness: Minimum 4″ (101.6 mm) ✔ Electrical: 1.0 HP, 110 V/60 Hz, single-phase
✔ Max Lift Height: 24 3/16″ (2’0″)
✔ Lowered Height: 4 1/8″ drive-on clearance
✔ Platform Dimensions: 57 3/16″ L x 70 1/16″ W
✔ Overall Dimensions (raised): 84 1/16″ L x 70 1/16″ W (7’0″ x 5’10”)
✔ Concrete Thickness: Minimum 4″ (101.6 mm)
✔ Electrical: 1.0 HP, 110 V/60 Hz, single-phase
*Concrete must meet the manufacturer’s minimum requirements as specified above. Installing this lift on inadequate concrete may result in serious injury or death. It is the customer’s responsibility to verify concrete thickness and strength prior to purchase and installation. Stacking taller vehicles vertically may require additional ceiling height. Measure your specific vehicles before ordering. Note: required ceiling clearance equals max lift height plus your vehicle height plus working clearance. Measure your specific vehicles before ordering.
AMGO LR06 6K Portable Low-Rise Lift Specifications |
|
| Manufacturer | AMGO |
| Model | LR06 |
| Lifting Capacity | 6,000 lbs (2,800 kg) |
| Motor | 1.0 HP, 110 V/60 Hz, single-phase |
| Lifting Time | 56 s |
| Max. Lifting Height | 24 3⁄16″ (614 mm) |
| Min. Height | 4 1⁄8″ (105 mm) |
| Runway Length | 57 3⁄16″ (1,452 mm) |
| Overall Width | 70 1⁄16″ (1,780 mm) |
| Width Between Runways | 34 3⁄16″ (868 mm) |
| Overall Length | 84 1⁄16″ (2,135 mm) |
| Gross Weight | 827 lbs (375 kg) |
| Included Accessories | 4× 1 ½″ rubber pads |
| Warranty | Steel Structure (columns, carriages, arms, beams, ramps, etc.): 5 Years Hydraulic Parts (cylinders, seals, hoses, fittings): 3 Years Other Parts (excl. Consumables), electrical, power units: 2 Years |
AMGO LR06 Frequently Asked Questions
What is a low-rise scissor lift best for?
Wheel and body-height work: tires, brakes, detailing, bodywork, and quick inspections. The LR06 raises 6,000 lbs to 24-3/16″ in 56 seconds — you’re not crawling, and the vehicle is at perfect wheel-service height. It’s not for standing underneath; that’s mid-rise and full-rise territory.
Does the LR06 run on a normal home outlet?
Yes — the 1.0 HP motor runs on 110V/60Hz household power. Combined with caster mobility and a compact 84-1/16″ x 70-1/16″ footprint, it works anywhere with a flat slab.
Is it really portable?
Yes — the LR06 is designed to move around the shop and stow when not in use. At 4-1/8″ collapsed, most cars drive right over it for storage.
Which AMGO scissor lift is right for me?
This LR06 is the 6,000 lb portable low-rise. Heavier trucks at wheel height? The LR10 carries 10,000 lbs. Need to sit or kneel under the vehicle? The mid-rise MRP06 reaches 41-3/4″. Full standing height? The XL-7 rises to 78-3/4″.
Do I need to bolt it to the floor?
No — low-rise scissors are free-standing on concrete at least 4″ thick. That’s part of the portability appeal.
Is the AMGO LR06 worth it?
A 6,000 lb wheel-service station that plugs into a wall outlet and rolls out of the way, backed by AMGO’s 5-year structure / 3-year hydraulics / 2-year electrical warranty. See the Reviews tab above for buyer feedback, and our lift style guide if you’re comparing categories.
Ready to upgrade your garage? Talk to a Lift Specialist or explore more options.
European Price and Ordering Information
Price in EUR: €1608.87. This price has been converted from the original USD price at the ECB euro foreign exchange reference rate 2026-10-26: 1 EUR = 1.1188 USD (USD to EUR rate 0.8938). Product specifications, capacities and dimensions above are reproduced exactly as supplied by the manufacturer; where US imperial units (lb, inches) are shown, please verify measurements before ordering.
Brand: AMGO | Product type: Scissor Lift | Model / SKU: LR06 | Source product page: https://pitmasterauto.com/products/amgo-6-000-lb-portable-low-rise-scissor-lift-lr06
