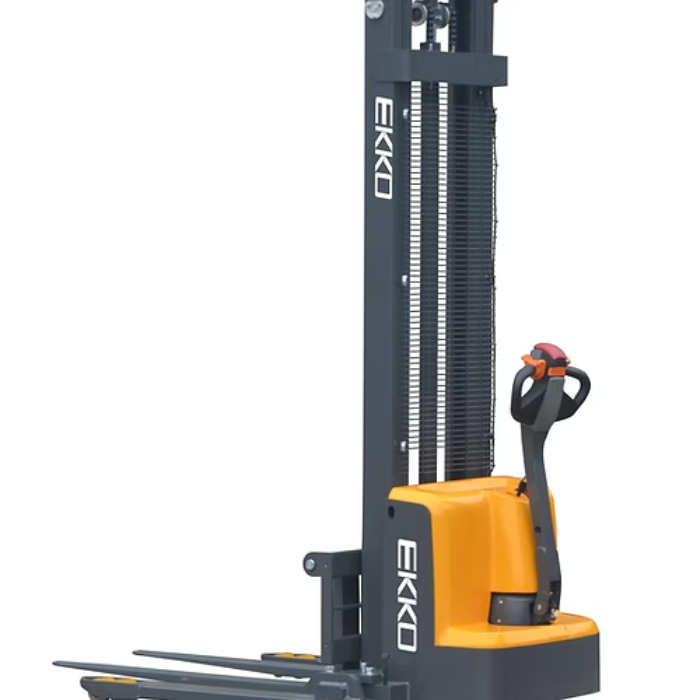

Manual Lifts Slow You Down—The Ekko EB13E-138 Electric Straddle Stacker Delivers 2,800 lb Capacity & 138″ Reach
Buying a manual straddle stacker often means wrestling heavy loads, slowing down your workflow, and risking operator fatigue or injury. You’ve felt the strain of pushing and pulling without power assistance, and you know how frustrating it is when your warehouse throughput grinds to a crawl. The Ekko 2,800 lb Electric Straddle Stacker (EB13E-138) solves those headaches by combining the maneuverability of a walkie stacker with the power of an electric lift. With a 24 V center drive motor and durable polyurethane wheels, this electric straddle stacker glides smoothly over dock plates and uneven floors—no more jarring bumps or jerky stops.
Imagine effortlessly lifting pallets to a full 138″ height without breaking a sweat. The EB13E-138’s adjustable forks (8.3–33.5″) and legs (45.7–59.1″) accommodate a wide range of pallet sizes, while its compact 70″ overall length lets you navigate narrow aisles. Thanks to robotic-welded steel construction and a robust 2.2 kW lift motor, it’s built to withstand daily impact and directional changes. Whether you’re stocking high racks or unloading trucks, you’ll feel confident in its precision and reliability. Plus, the ergonomic handle and Curtis instrument controller put intuitive operation right at your fingertips.
When uptime matters, the twin 12 V / 100 Ah batteries and 24 V / 15 A internal charger keep you running all shift long. You’ll spend less time charging and more time moving product, thanks to fast-charge capability. And with a generous 3-year limited warranty, you’re covered for the long haul. From stockrooms and manufacturing floors to busy loading docks, the EB13E-138 adapts to your toughest material-handling challenges. It’s the smart, safe, and powerful choice for any operation demanding high reach and high performance.
Not quite the right lift height or width? Explore all straddle stackers.
Benefits of the Ekko EB13E-138 Straddle Stacker
Improve Warehouse Efficiency | Cut handling time and boost throughput
Reduce Operator Fatigue | Effortless electric lifting and driving
Maximize Vertical Storage | Reach heights up to 138″
Enhance Safety | Stable mast and clear operator sightlines
Lower Maintenance Costs | Durable steel frame and quality components
Increase Uptime | Fast-charge batteries keep you running
Key Features of the Ekko EB13E-138 You’ll Love:
- Full-Powered Electric Drive: 24 V center drive motor delivers smooth acceleration and precise speed control—up to 4.2 km/h unladen—minimizing operator fatigue and speeding dock work.
- High-Reach Mast System: Dual-stage mast lifts to 138″ (extended mast 154″) for accurate placement on upper racks with excellent stability and visibility.
- Adjustable Forks & Legs: Forks adjust 8.3–33.5″; legs adjust 45.7–59.1″ to handle standard pallets, skids, and custom crates without equipment changes.
- Ergonomic Curtis Controls: Curtis instrument controller with intuitive handle buttons for lift, lower, and drive functions—quick to learn and comfortable for long shifts.
- Robust Steel Construction: Robotic-welded steel frame resists impacts and twisting for long service life at up to 2,800 lb loads.
- Fast Recharge Battery System: Twin 12 V / 100 Ah batteries and onboard 24 V / 15 A charger minimize downtime between shifts.

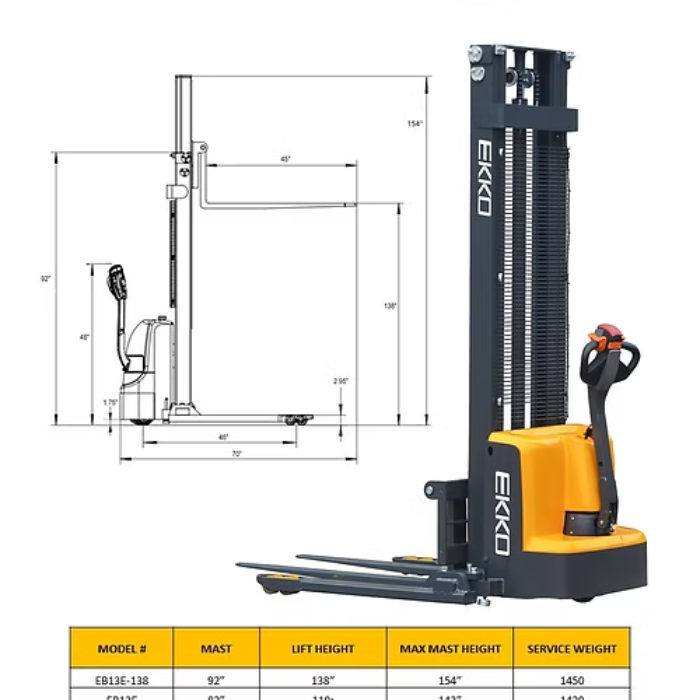

Ekko EB13E-138 Electric Straddle Stacker Specifications |
|
|---|---|
| Manufacturer | Ekko Lifts |
| Model | EB13E-138 |
| Load Capacity | 2,800 lb |
| Max. Lift Height | 138 in |
| Extended Mast | 154 in |
| Lowered Mast | 92 in |
| Fork Length | 45.3 in |
| Fork Width | 8.3–33.5 in |
| Leg Width | 45.7–59.1 in |
| Load Center | 24 in |
| Lowered Fork Ht. | 2.35 in |
| Turning Radius | 52.6 in |
| Overall Length | 70 in |
| Overall Width | 61 in |
| Drive Motor | 0.75 kW (4.0/4.2 km/h laden/unladen) |
| Lift Motor | 2.2 kW (92/136 mm/s laden/unladen) |
| Battery | 2×12 V 100 Ah |
| Charger | 24 V 15 A |
| Wheels | Polyurethane |
| Controls | Curtis Instrument Controller |
| Construction | Robotic-Welded Steel |
| Service Weight | 1,450 lb |
| Warranty | Frame, Forks & Mast – 3 yr / 6,000 hr Electric Drive & Hydraulic Components – 1 yr / 2,000 hr Battery – 1 yr / 2,000 hr Standard Parts – 1 yr / 2,000 hr Wearable Items – 30 days |
European Price and Ordering Information
Price in EUR: €5407.58. This price has been converted from the original USD price at the ECB euro foreign exchange reference rate 2026-10-26: 1 EUR = 1.1188 USD (USD to EUR rate 0.8938). Product specifications, capacities and dimensions above are reproduced exactly as supplied by the manufacturer; where US imperial units (lb, inches) are shown, please verify measurements before ordering.
Brand: Ekko Lifts | Product type: Straddle Stacker | Model / SKU: EB13E-138 | Source product page: https://pitstop-pro.com/products/ekko-2-800-lb-electric-straddle-stacker-138-max-lift-height-eb13e-138
