Power, Reach & Control in One: Ekko EB14C Full Powered Straddle Stackers – 3,000 lb | 118″ & 138″ Lifts
Buying the wrong warehouse equipment can slow you down, wear out your team, and leave you juggling multiple machines just to handle a simple pallet move. That’s where a straddle stacker like the Ekko EB14C series shines—combining forklift reach, walkie stacker ease, and reach truck versatility into one electric straddle stacker that tackles up to 3,000 lb. Whether you’re squeezed into narrow aisles or racing against tight deadlines, these stackers help you breeze through tasks without the usual bumps and bruises.
With lift heights of 118″ and 138″ available, you can pick the model that best matches your warehouse ceilings and rack configurations. Both variants feature a dual damping drive system for stable handling, 24 V/85 Ah batteries for all-day uptime, and ergonomic Curtis controllers to reduce fatigue. Adjust the forks from 8.7″–32.1″ and the legs from 35.4″–51.2″ to fit any load—no extra tools required.
Engineered from heavy-gauge steel and built to withstand daily impacts, these Ekko straddle stacker models bring confidence to every lift. From loading docks and stock rooms to manufacturing floors, their durable drives and polyurethane wheels deliver consistent power across any surface. With visible gridlines in the specifications below, you can seamlessly export these tables into Excel or Google Sheets for easy reference.
If this isn’t quite it, you’ll find the right stacker here.
Benefits of the Ekko EB14C Straddle Stacker Family
Lower Maintenance | Minimal lubrication and service intervals
Spill-Free Battery | Sealed, leak-proof design
Smooth Maneuverability | Nimble steering in tight aisles
3000 lb Load Capacity | Handles heavy pallets effortlessly
Fast 24 V Recharge | Quick charging cuts downtime
Enhanced Operator Comfort | Ergonomic controls reduce fatigue
Key Features of the EB14C-118 / EB14C-138 You’ll Love:
- Dual Damping Drive System (All Models): The integrated dual damping drive system absorbs shocks and reduces vibration for smoother travel across uneven floors—cutting operator fatigue during long shifts.
- Adjustable Forks & Legs (All Models): Quickly dial fork width from 8.7″–32.1″ and leg width from 35.4″–51.2″ to match changing pallet sizes—no tools required.
- 24 V/85 Ah Battery with Fast Charger (All Models): High-capacity pack paired with an onboard 24 V/10 A charger keeps uptime high and downtime low.
- Extended Mast Heights (Variant-Specific): Choose 118″ (EB14C-118) for medium racks or 138″ (EB14C-138) for extra reach—both telescope smoothly for confident high stacking.

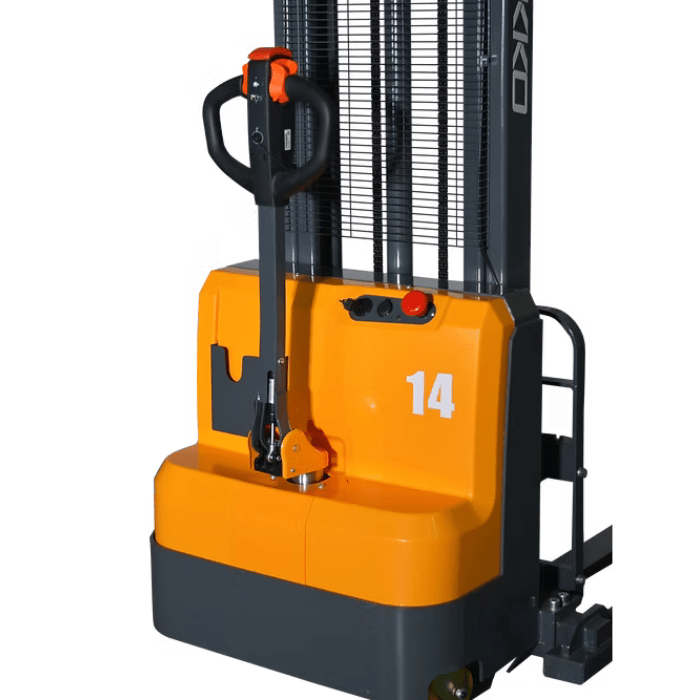

- Curtis Instrument Controller (All Models): Intuitive speed, direction, and lift control with an ergonomic handle means a short learning curve and consistent performance across your fleet.
- Heavy-Duty Steel Construction (All Models): Reinforced, high-gauge steel chassis shrugs off daily impacts and protects critical components for a long service life.
Ekko EB14C Full Powered Straddle Stacker Specifications |
||
|---|---|---|
| Specification | EB14C-118 (118″ Lift) |
EB14C-138 (138″ Lift) |
| Manufacturer | Ekko Lifts | |
| Model | EB14C-118 | EB14C-138 |
| Load Capacity (lbs) | 3000 | 3000 |
| Max Lift Height (in) | 118 | 138 |
| Extended Mast Height (in) | 146.5 | 166.9 |
| Lowered Mast Height (in) | 85 | 94.2 |
| Fork Length (in) | 45.3 | 45.3 |
| Fork Width (in) | 4 | 4 |
| Fork Adjustment Width (in) | 8.7 – 32.1 | 8.7 – 32.1 |
| Adjustable Legs (in) | 35.4 – 51.2 | 35.4 – 51.2 |
| Load Center Distance (in) | 24 | 24 |
| Lowered Fork Height (in) | 2.6 | 2.6 |
| Turning Radius (in) | 57.5 | 57.5 |
| Overall Length (in) | 73.7 | 73.7 |
| Max Overall Width (in) | 61 | 61 |
| Battery (V/Ah) | 24 V / 85 Ah | 24 V / 85 Ah |
| Internal Charger (V/A) | 24 V / 10 A | 24 V / 10 A |
| Lifting Motor (kW) | 2.2 | 2.2 |
| Driving Motor | DC Drive Motor | DC Drive Motor |
| Service Weight (lbs) | 1520 | 1780 |
| Warranty | Frame, Forks & Mast – 3 yr / 6,000 hr Electric Drive & Hydraulic Components – 1 yr / 2,000 hr Battery – 1 yr / 2,000 hr Standard Parts – 1 yr / 2,000 hr Wearable Items – 30 days |
|
European Price and Ordering Information
Price in EUR: €4978.55. This price has been converted from the original USD price at the ECB euro foreign exchange reference rate 2026-10-26: 1 EUR = 1.1188 USD (USD to EUR rate 0.8938). Product specifications, capacities and dimensions above are reproduced exactly as supplied by the manufacturer; where US imperial units (lb, inches) are shown, please verify measurements before ordering.
Brand: Ekko Lifts | Product type: Straddle Stacker | Model / SKU: EB14C-118 | Source product page: https://pitmasterauto.com/products/ekko-3-000-lb-electric-straddle-stacker-max-lift-heights-118-or-138-eb14c-118
