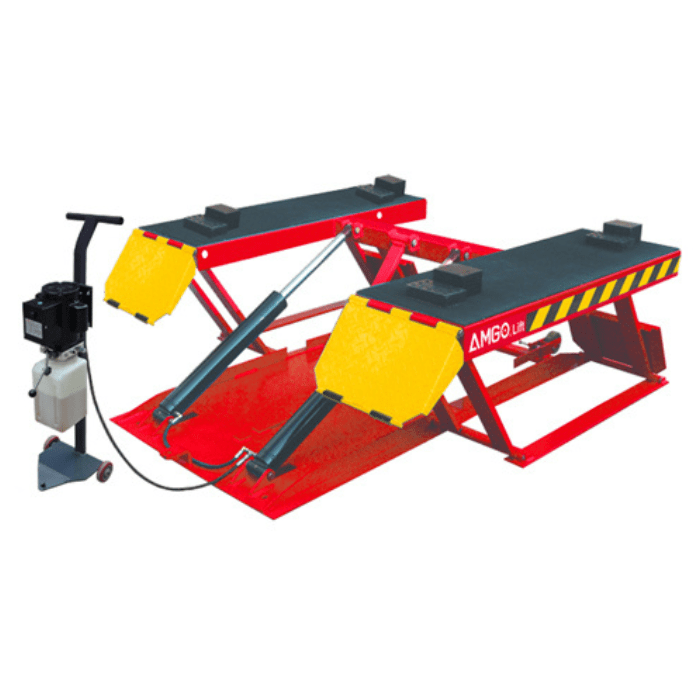

Low Ceilings, Big Jobs—AMGO LR10 10,000 lb Low Rise Lift Delivers Space-Saving Power
Buying the wrong lift can grind your shop to a halt—too low, too bulky, or impossible to move means wasted time and cramped workspace. That’s exactly why the AMGO LR10 Low Rise Lift is a game-changer for mechanics who need a reliable, space-saving solution without sacrificing capacity. With a 10,000 lb lift capacity and just 4 1/8″ minimum height, this portable low rise lift slides effortlessly under low-profile vehicles, letting you tackle tire, brake, and body repairs without wrestling your equipment into position.
Imagine swapping tires or inspecting brakes without the back-and-forth of a cumbersome jack or floor lift. The LR10’s gravitational lock-release and automatic multi-point safety locks engage at every stage, so you can raise vehicles up to 24 3/16″ in about 56 seconds and stay safe throughout the job. And thanks to the included rubber pads—both 1 ½″ and 2 ¾″ options—you’ll never scratch paint or dent panels, even on delicate bodywork.
When your shop layout demands flexibility, the LR10 delivers. The extendable drive-in ramps add usable runway length on each side, while the detachable power unit stand and telescoping dolly move from bay to bay in seconds. Whether you’re setting up a temporary lift station or need a permanent solution in a low-ceiling bay, this portable low rise lift keeps your workflow smooth, your workspace clear, and your customers happy.
One size doesn’t fit all! Browse our Vehicle Lifts with different capacities to support your ride.
Benefits of the AMGO LR10 Low Rise Lift
Quick Setup & Breakdown | Spend less time prepping and more on repairs.
Maximized Shop Flexibility | Move lift between bays in seconds.
Enhanced Safety | Locked at every stage for worry-free lifting.
Scratch-Free Operation | Rubber pads protect paint and bodywork.
Space-Saving Footprint | Fits in low-ceiling or tight work areas.
Versatile Vehicle Coverage | Handles cars, trucks, and more.
Key Features of the AMGO LR10 10,000 lb Low Rise Lift You’ll Love:
- Automatic Multi-Point Safety Locks: At every lift height, the LR10 engages locks automatically for hands-free security—reducing setup time and risk on each raise.
- Portable Power Unit on Stand: Detachable power unit stand with telescoping dolly rolls to any bay quickly, making it easy to share across workstations.
- Gravitational Lock-Release Mechanism: Disengage all mechanical locks with a single lever for smooth, precise lowering without tedious manual steps.

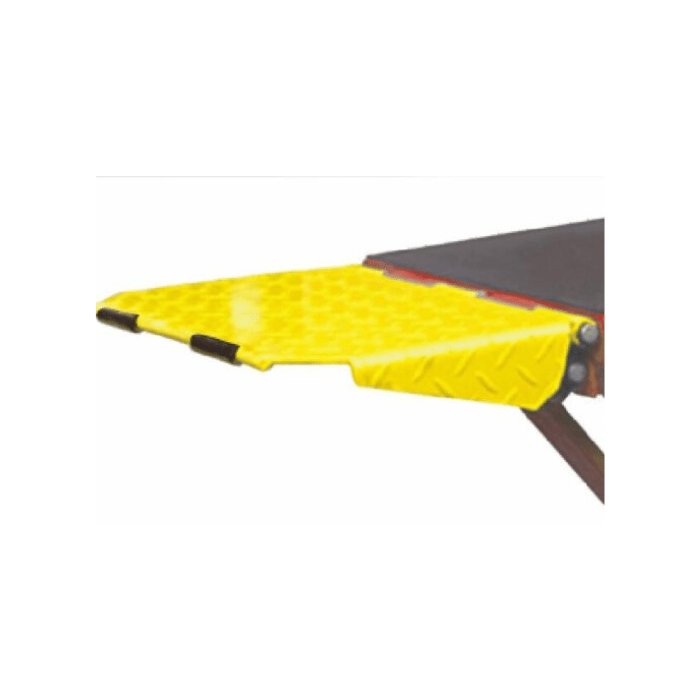

- Extendable Drive-In Ramps: The drive-in ramp extends as part of the platform to add usable runway length—no extra ramps or parts to misplace.

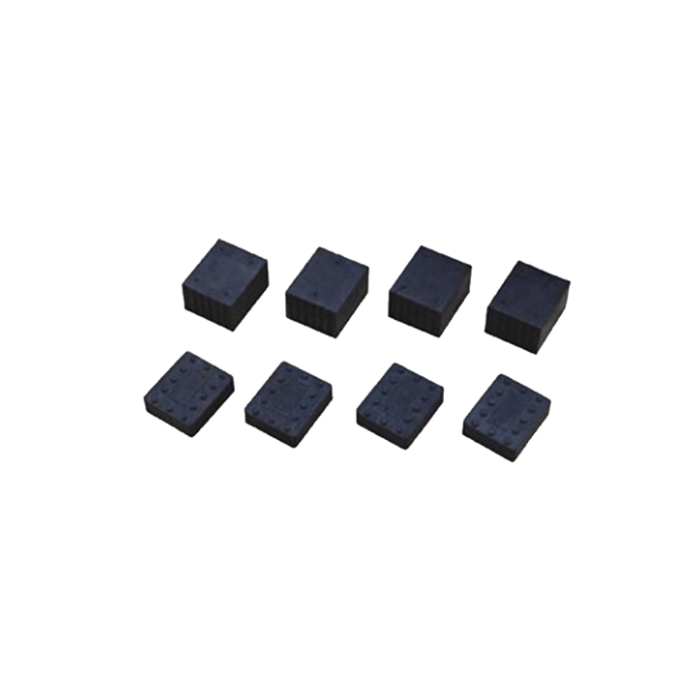

- Dual Rubber Pad Options: Includes 4× 1 ½″ and 4× 2 ¾″ rubber lift pads to protect painted surfaces and frame rails.
- Compact Low-Profile Design: At just 4 1/8″ collapsed height, slides under low-clearance vehicles yet raises to 24 3/16″ for undercarriage access.

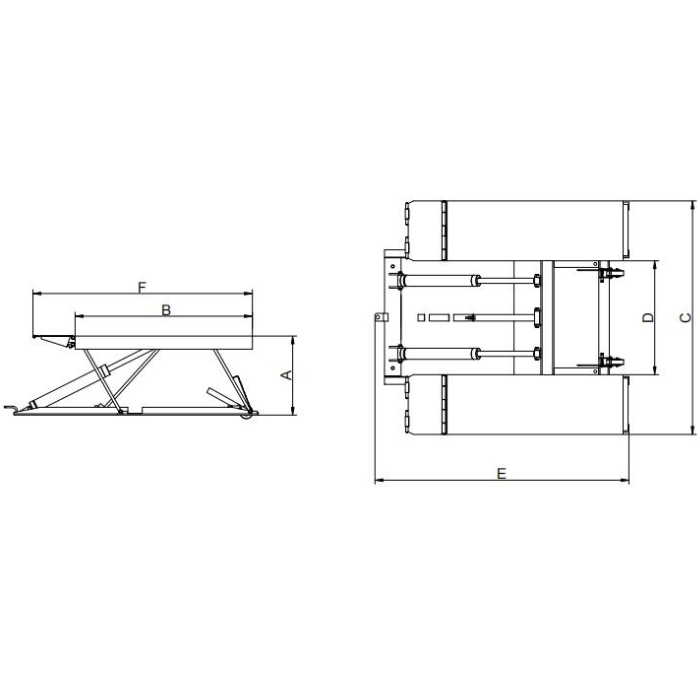

AMGO LR10 10K Low Rise Lift Specifications |
|
|---|---|
| Manufacturer | AMGO |
| Lifting Capacity | 10,000 lbs (4,500 kg) |
| Lifting Time | 56 s |
| Max. Lifting Height (A) | 24 3/16″ (614 mm) |
| Min. Height | 4 1/8″ (105 mm) |
| Runway Length (B) | 57 3/16″ (1,452 mm) |
| Overall Width (C) | 77 15/16″ (1,980 mm) |
| Width Between Runways (D) | 34 3/16″ (868 mm) |
| Overall Length (E) | 84 1/16″ (2,135 mm) |
| Gross Weight | 1,052 lbs (477 kg) |
| Motor | 1.0 HP, 110 V / 60 Hz, single-phase |
| Included Accessories | 4× 1 ½″ rubber pads; 4× 2 ¾″ rubber pads |
AMGO LR10 Frequently Asked Questions
What is the LR10 built for?
Heavy wheel-height service: a 10,000 lb low-rise scissor lift for trucks, vans, and fleet vehicles that need tire, brake, body, and inspection work at 24-3/16″ of rise. At 4-1/8″ collapsed, most vehicles drive straight over it.
Does the LR10 run on a normal home outlet?
Yes — the 1.0 HP motor runs on 110V/60Hz household power with a mobile power unit, so the lift moves where the work is.
Which AMGO scissor lift is right for me?
This LR10 is the heavy 10,000 lb low-rise. Lighter vehicles? The LR06 costs less and lifts faster. Need to work seated or kneeling underneath? The mid-rise MRL09 reaches 47-1/4″. Full standing height? The XL-7 rises to 78-3/4″.
Do I need to bolt it to the floor?
No — low-rise scissors are free-standing on concrete at least 4″ thick. Extendable drive-in ramps and the detachable power unit stand keep setup simple.
Is the AMGO LR10 worth it?
Ten thousand pounds of wheel-service capacity on a wall outlet, backed by AMGO’s 5-year structure / 3-year hydraulics / 2-year electrical warranty. See the Reviews tab above for buyer feedback.
Need a different lift style? Compare all vehicle scissor lifts, browse the full Car Lifts collection, or read our lift style guide. Questions? Call (470) 208-2754.
European Price and Ordering Information
Price in EUR: €2011.08. This price has been converted from the original USD price at the ECB euro foreign exchange reference rate 2026-10-26: 1 EUR = 1.1188 USD (USD to EUR rate 0.8938). Product specifications, capacities and dimensions above are reproduced exactly as supplied by the manufacturer; where US imperial units (lb, inches) are shown, please verify measurements before ordering.
Brand: AMGO | Product type: Scissor Lift | Model / SKU: LR10 | Source product page: https://pitmasterauto.com/products/amgo-low-rise-lift-10-000-lb-capacity-lr10
