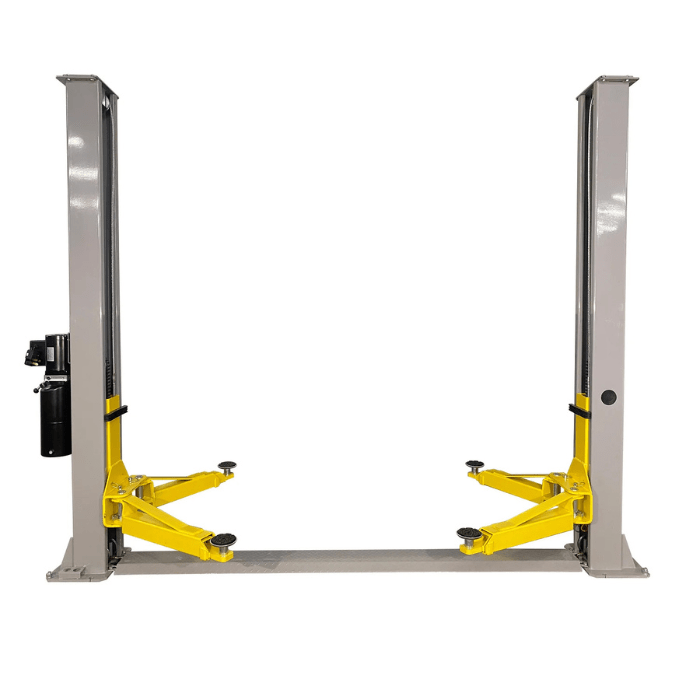

Upgrade Your Garage or Shop with the Triumph NT-9. A Powerful 2 Post Lift Without the High Price
The Triumph NT-9 9,000 lb Two Post Auto Lift is a game-changer for both small business owners and car enthusiasts. If you’re tired of paying high prices for a quality 2 post car lift, the NT-9 offers unbeatable value without sacrificing performance. Whether you’re running a repair shop or creating your dream garage at home, this lift provides everything you need to get the job done efficiently and affordably. And once you start filtering for lifts that don’t need overhead clearance, meaning baseplate or floor-plate designs, the field thins quickly. Most 2-post lifts in the 8,000-10,000 lb range are overhead variants that won’t fit a residential garage’s ceiling.
With a 9,000 lb lifting capacity, this lift is built to handle a wide variety of vehicles, from compact sedans to larger SUVs. Its three-stage front arms provide excellent reach, and its compact floor plate design makes it ideal for low-ceiling spaces. This lift includes a powerful 3 horsepower motor that gets vehicles lifted in just 40 seconds, helping you work faster and more efficiently. Three-stage front arms reach short and long wheelbases without swapping equipment, and the floor plate design routes hydraulic lines along the floor instead of the ceiling, so a garage with roughly 10 feet of ceiling can take the lift without structural modification.
The NT-9 is incredibly easy to install, coming with all the necessary floor mounting hardware. It’s designed to be durable and reliable, built to last even under heavy use. Whether you need it for your business or home garage, the NT-9 9,000 lb Two Post Auto Lift offers unmatched value and performance. For owners working in standard residential garages or shops where overhead clearance is at a premium, the NT-9 brings 9,000 lb commercial capability into the kind of space most 2-post lifts need to leave behind.
Need a different style or size? Compare all 2 post car lifts, browse the full Car Lifts collection, or read our honest Are Triumph Lifts Worth It? breakdown. Questions? Call (470) 208-2754.
Benefits of the Triumph NT-9 Vehicle Lift
Key Features of the Triumph NT-9 9,000 lb Two-Post Car Lift You’ll Love:
• 9,000 lb Lifting Capacity: Easily lifts sedans, SUVs, and light trucks, offering the versatility needed for a wide range of automotive repairs and maintenance tasks. 9K rating handles full-size sedans, SUVs, and most light trucks without straining the structural margin during daily cycling.
• Three-Stage Front Arms: Adjustable arms provide maximum reach and flexibility, making it easy to accommodate vehicles of various sizes and chassis configurations. Three-stage front arms reach short and long wheelbases without swapping equipment between sedan and truck service.
• Floor Plate Design: Covers cables and hoses for a clean, organized appearance and is ideal for low-ceiling spaces, enhancing safety and functionality in compact garages or shops. Floor-plate routing fits residential ceilings from about 9’9″ up, where overhead 2-post lifts won’t install.
• Fast Lifting Speed: Powered by a 3 HP motor, the lift reaches its full height of 72 inches in just 40 seconds, helping reduce downtime and boost efficiency. Quick cycle time means less waiting between vehicles, particularly valuable for high-volume tire and brake service work.
• Durable Power Unit: Equipped with a robust, reliable motor for smooth operation. Suitable for both professional repair facilities and home garage setups. The power unit is sized for full-capacity cycling, not just light loads. Important distinction from cheaper underpowered alternatives.
• Heavy Duty Construction: Engineered for long-term durability, the NT-9 is built to withstand frequent heavy use, making it a dependable investment for any workspace. Reinforced base plates and structural columns designed for sustained daily commercial cycling rather than occasional service work.
Minimum Garage Requirements
✔ Ceiling Height: At least 117″ (9’9″) recommended ✔ Footprint: 96″ drive-thru x 132″ overall (8’0″ x 11’0″) ✔ Concrete Thickness: Minimum 4″ (101.6 mm) ✔ Concrete Strength: Minimum 3,000 PSI compressive ✔ Electrical: 220V, 3 HP motor ✔ Overall Lift Height: 111″ (9’3″) (measure before ordering)
✔ Ceiling Height: At least 117″ (9’9″) recommended
✔ Footprint: 96″ drive-thru x 132″ overall (8’0″ x 11’0″)
✔ Concrete Thickness: Minimum 4″ (101.6 mm)
✔ Concrete Strength: Minimum 3,000 PSI compressive
✔ Electrical: 220V, 3 HP motor
✔ Overall Lift Height: 111″ (9’3″) (measure before ordering)
*Concrete must meet the manufacturer’s minimum requirements as specified above. Installing this lift on inadequate concrete may result in serious injury or death. It is the customer’s responsibility to verify concrete thickness and strength prior to purchase and installation. Stacking taller vehicles vertically may require additional ceiling height. Measure your specific vehicles before ordering.
Triumph NT-9 Two-Post Auto Lift Specifications |
|
| Manufacturer | Triumph |
| Lifting Capacity | 9,000 lbs |
| Overall Height | 111″ |
| Overall Width | 132″ |
| Width Between Posts | 106″ (at mirror height) |
| Drive Thru Width | 96″ (at tire height) |
| Lifting Height | 72″ |
| Lowered Height | 4.5″ |
| Base Plate Size | 19″x17″ |
| Truck Adapters | Yes |
| Lock Release | Dual Point |
| Electric Safety Shutoff | No |
| Concrete PSI Requirement | 3,000 PSI |
| Motor | 3 Horsepower |
| Voltage | 220 Volts |
| Lifting Time | 40 seconds |
| Shipping Weight | 1,303 lbs |
Triumph NT-9 Frequently Asked Questions
How much ceiling height does the NT-9 need?
The floor-plate design skips the overhead beam entirely, so the only fixed height is the posts themselves at 111″ (9’3″). Plan on at least 117″ (9’9″) of ceiling so you have room to raise a vehicle to a useful working height. A true 9-foot ceiling is 108″, which is shorter than the posts, so it will not work. Measure your ceiling and your tallest vehicle before ordering.
What power does the NT-9 need?
The NT-9’s 3 HP motor runs on a standard 220V single-phase circuit — the same shop-grade power the rest of Triumph’s 2-post lineup uses. Have an electrician confirm your garage has a dedicated 220V outlet near the power-unit column before delivery.
Will my truck fit on it?
The 9,000 lb rating covers sedans, SUVs, and half-ton pickups — an F-150 curbs well under 6,000 lbs — and truck adapters are included for frame-lift points. For 3/4-ton and heavier, step up to the Triumph NT-11.
Which Triumph 2-post is right for me?
This NT-9 is the low-ceiling home-garage pick. The NTO-9AE is the same 9,000 lbs in an overhead (clear-floor) format with an electric safety shutoff — better if you have 12 feet of ceiling; the C-7000 is the 7,000 lb portable; and the NT-11 steps up to 11,000 lbs in the same low-profile format.
Do I need to bolt it to the floor?
Yes — every 2-post must be anchored, and the floor anchors ship with the lift. Your slab needs to be 3,000 PSI concrete (about 4″ minimum thickness). Verify before ordering.
Should I get a 2-post or a 4-post lift?
Two-posts like this one are built for repair work — wheels hang free for brakes, suspension, and tires. Four-posts win for storage and drive-on ease. Our 2-Post vs 4-Post guide walks through the decision in five minutes.
How does freight delivery work?
The lift ships as freight at about 1,303 lbs. You can choose curbside freight delivery or free pickup at one of Triumph’s 3 warehouse locations — enter your ZIP above to see whether one is close to you. Most orders arrive within 1-2 weeks.
Is the Triumph NT-9 worth it?
Low ceilings usually force buyers into compromises — the NT-9 delivers a full 9,000 lb capacity at one of the lowest overall heights and prices in the class. See the Reviews tab above for buyer feedback, and read our Are Triumph Lifts Worth It? breakdown on The Pitstop Journal.
Ready to upgrade your garage? Talk to a Lift Specialist or explore more options.
European Price and Ordering Information
Price in EUR: €1698.25. This price has been converted from the original USD price at the ECB euro foreign exchange reference rate 2026-10-26: 1 EUR = 1.1188 USD (USD to EUR rate 0.8938). Product specifications, capacities and dimensions above are reproduced exactly as supplied by the manufacturer; where US imperial units (lb, inches) are shown, please verify measurements before ordering.
Brand: Triumph | Product type: 2-Post Lift | Model / SKU: NT-9 | Source product page: https://pitmasterauto.com/products/triumph-9-000-lb-two-post-auto-lift-nt-9
