The 3,300 lb Portable EV Lift Table That Actually Fits Under a Battery Pack
The iDEAL LT-EV3300DC-X is a portable, high-rise, commercial-grade lift table built specifically for the tech who spends the workday under electric and hybrid vehicles. Its 3,300 lb capacity handles the weight of a modern EV battery pack, motor assembly or full powertrain module, and the multi-adjustable insulated EV platform slides, tilts and locks so you can position that component exactly where it needs to come out or go in.
A 12VDC deep-cycle sealed battery with an integrated 110VAC charger powers the DC electric hydraulic system, so the lift runs whether you have shop air, a wall outlet or nothing but the battery in the base. Dual control: full function from the main control box panel and from the magnetic remote hand controller, so one person can position the platform and stage the load without walking around the lift. The lift rises to 72.6 inches in 20 seconds and lowers in 22, with three intermediate locking positions at 49, 61 and 68 inches.

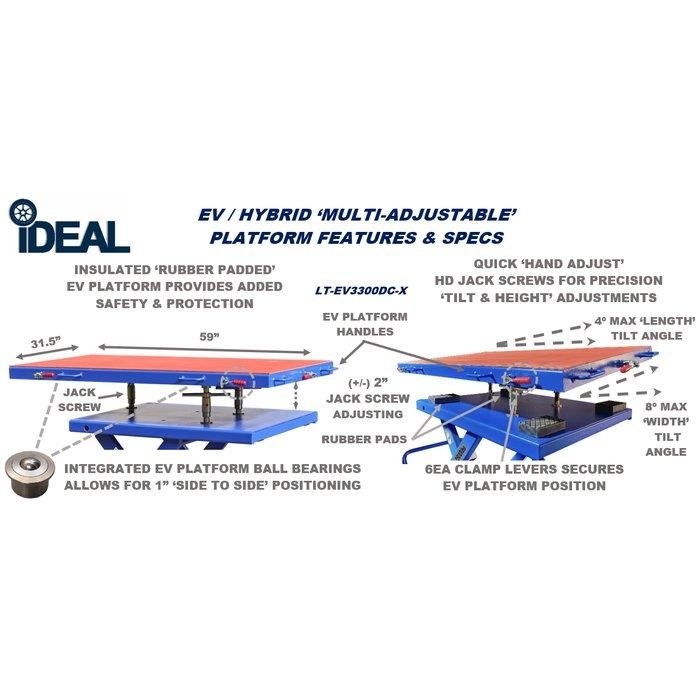

The 59 x 31.5 inch EV platform includes six adjustable latch clamps, tilt jack screws (+/- 4 to 8 degrees) and multi-directional sliding to line up the load. Portability is built in: an integrated pallet-jack dolly with 6 inch poly wheels and four directional-locking poly swivel casters roll the whole lift wherever the vehicle is. Includes a 12VDC auxiliary outlet port for tools, a utility tray, sub-platform storage, four rubber pads and leg support stands. Backed by iDEAL / Tuxedo.
Key Features of the LT-EV3300DC-X That Matter Under an EV:
– 3,300 lb Capacity, 12VDC Battery Power: Deep-cycle sealed battery with integrated 110VAC charger runs the DC electric-hydraulic system. No shop air required. Auxiliary 12VDC outlet port powers tools while you work.
– Insulated Multi-Directional EV Platform: 59 inch by 31.5 inch platform with six adjustable latch clamps and heavy-duty jack-screw tilt and height adjustments. Insulated for safe EV battery pack and high-voltage component handling.

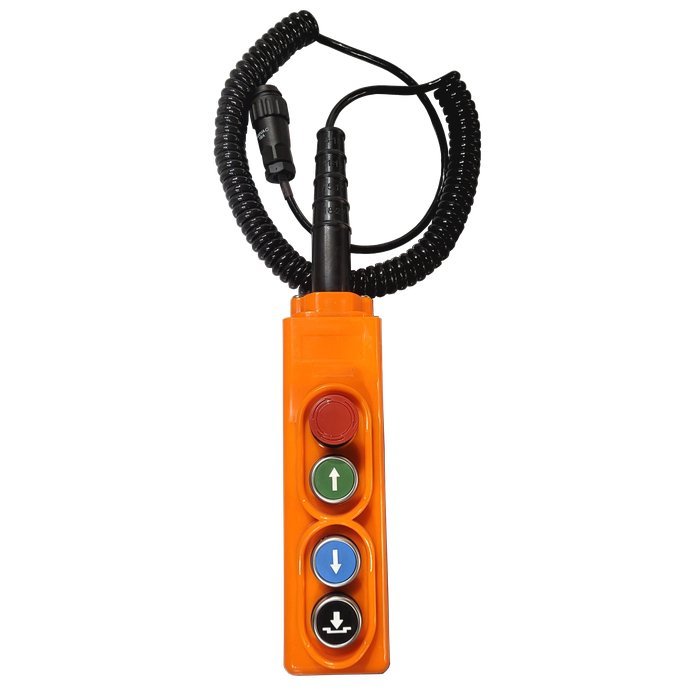

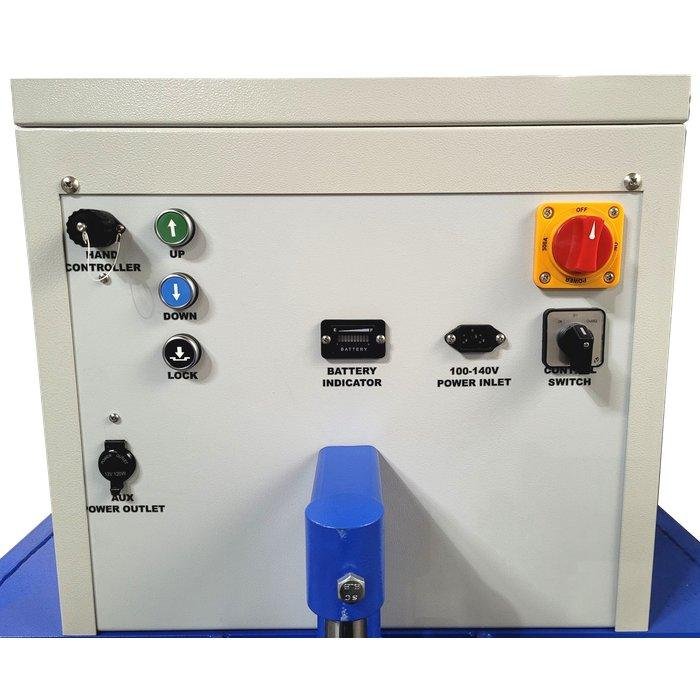

– Dual Control Operation: Full function from both the main control box panel and a magnetic remote hand controller. Position the platform and stage the load without walking around the lift.
– Three Locking Height Positions: Locks at 49, 61 and 68 inches with a max lift height of 72.6 inches. 20-second rise, 22-second lower. Height range from 35.4 to 72.6 inches covers everything from crossmember work to full battery-pack drops.
– Double-Scissor Heavy-Duty Design: Twin lift scissors with high-quality hydraulic cylinder and grease zerks at every pivot. Built to handle full-capacity loads day after day in a busy EV service shop.
– Integrated Pallet-Jack Dolly: 6 inch poly wheels on an integrated pallet-jack dolly let you move the fully loaded lift across the shop floor. Front swivel and rear directional-locking poly casters hold direction under load.
– Sub-Platform Storage + Utility Tray: Built-in utility and tool tray plus a sub-platform storage area keep torque wrenches, high-voltage gloves, isolation testers and hardware inside arm’s reach while you work.
– Durable Powder-Coat Finish: Powder-coated frame and platform stand up to shop chemicals, battery electrolyte spills and daily use. Four rubber pads (6.4 x 4 x 1.45 inch) and leg support stands included.
LT-EV3300DC-X EV Lift Table Specifications |
|
| Manufacturer | iDEAL Distributed by Tuxedo Distributors, LLC |
| Model | LT-EV3300DC-X |
| Configuration | Portable 12VDC battery-powered electric-hydraulic scissor lift table |
| Primary Application | EV and hybrid vehicle battery pack, motor and powertrain component service |
| Lifting Capacity | 3,300 lb |
| Overall Length | 67.3 in |
| Overall Width | 35.4 in |
| Hand Bar Height | 47.2 in |
| EV Platform Size | 59 in L x 31.5 in W |
| Min Platform Height | 35.4 in |
| Max Platform Height | 72.6 in |
| Locking Height Positions | 49 in, 61 in, 68 in |
| Platform Tilt Range | +/- 4 to 8 degrees |
| Rise Time | 20 seconds |
| Lower Time | 22 seconds |
| Power Supply (Charger) | 110VAC, 1.5 A, 1-phase |
| DC Power Unit | 12VDC, 120 A, 2.15 HP electric motor |
| Battery | 12VDC deep-cycle sealed, integrated charger, 12VDC auxiliary outlet port |
| Control | Dual control: control box panel + magnetic remote hand controller |
| Scissors | Double scissor with heavy-duty hydraulic cylinder and grease zerks |
| Casters | Front directional-locking + rear swivel poly casters, 6 in |
| Portability | Integrated pallet-jack dolly, 6 in poly wheels |
| Included Rubber Pads | Four, 6.4 in L x 4 in W x 1.45 in H |
| Also Included | Leg support stands, utility / tool tray, sub-platform storage |
| Finish | Durable powder coat |
| Shipping Weight | 1,090 lb |
| Warranty | iDEAL / Tuxedo standard limited warranty (see manual) |
