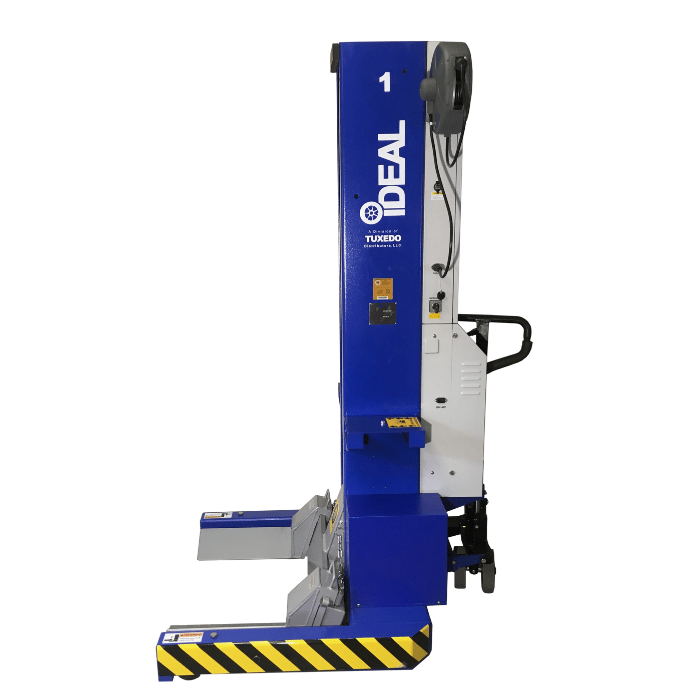

Stop Cord Clutter: iDEAL MSC-18K-X-472 Mobile Column Lifts (72,000 lb 4-Column Set) for Faster, Safer Heavy-Duty Work
Buying heavy-duty lifting equipment for buses, fire trucks, and large commercial vehicles can feel risky, especially when uptime, safety, and floor space are on the line. You don’t want cords snaking across the bay, fussy setup, or uneven lifts that slow your crew down. The iDEAL MSC-18K-X-472 fixes those pain points with ALI certification, independent mechanical locks, and continuous PLC plus optical encoder synchronization. Four 18,000 lb columns give you a 72,000 lb set capacity with a smooth rise to 67.1 inches in about 100 seconds. If you’ve been comparing Mobile Column Lifts, this system checks the boxes that matter for day-to-day fleet work.
Each column is battery powered at 24V DC with on-board chargers that plug into standard 100–140VAC, so you keep cords off the floor and the bay clear. Retractable communication cable reels and a U-shape wiring layout make vehicle entry and exit quick. Operators can run individual columns, an axle pair, or all four together from any column using the LCD master control. Adjustable lifting forks cover a wide wheel range from 12.6 to 22 inches, and the 17.9 inch fork length plus 10 inch fork-to-column clearance help with big tire packages. If you’re after a 72000 Mobile Column Lift that feels intuitive the first time you use it, this is it.
Day one setup is simple and indoor-friendly. Built-in pallet-jack wheels with poly casters make positioning easy, and the system stores compactly to free up floor space when the job’s done. Max distance between columns is 32 ft 8 in (32′ 8″), so you can accommodate long-wheelbase rigs and specialty vehicles. The package includes a magnetic-base LED work light, clear safety guidance, and a defined maintenance program. For buyers searching Mobile Column Lifts that blend safety, speed, and flexibility, the MSC-18K-X-472 is a proven, shop-ready choice.
Not the right choice? Explore our full lineup of column lifts to find fit for your setup.
Benefits of the iDEAL MSC-18K-X-472 Mobile Column Lift Set
Faster bay turns | ~100 s rise
Cleaner bays | Cord-free operation
Level lifts | PLC encoder sync
Broad vehicle fit | 12.6–22 in forks
Safer workflow | Mechanical locks
Flexible use | Individual or All modes
Key Features of the iDEAL MSC-18K-X-472 You’ll Love:
-
ALI-Certified safety with true mechanical locks
This system is ALI certified and uses independent mechanical locking for every column. Operators get predictable, level lifting across the set thanks to PLC and optical encoder synchronization. The result is safe under-vehicle access that your team can trust on every job. -
Any-column control with intuitive LCD interface
Run a single column, a paired axle, or all four from any column using the master control with LCD and keypad. The interface is easy to read, so operators can confirm modes and lift height at a glance. Faster confirmation means fewer mistakes and quicker turnarounds. -
Wide wheel coverage with adjustable forks
The adjustable fork range of 12.6 to 22 inches adapts to common commercial and emergency vehicle wheels. A 17.9 inch fork length and 10 inch fork-to-column clearance help with wide tires and protruding hub components. That versatility lets one set serve multiple fleets and body styles. -
Fleet-ready options for more kinds of work
Add the ALI-certified Cross Beam (MSC18KX-CRSBM) for frame-engaging, wheels-free service on heavy rigs. Use the Light Vehicle Adapter Kit (MSC18KX-LTVAK) to lift pickups and SUVs up to 20,000 lb combined. High-rise stands, spacers, and ramps expand your capability without buying another lift.
Minimum Garage Requirements
✔ Ceiling Height: At least 162″ (13’6″) to clear the mast at full extension (155.5″) ✔ Concrete Thickness: Minimum 4.5″ (114 mm) ✔ Concrete Strength: Minimum 3,000 PSI compressive ✔ Floor: Level concrete, indoors only. No asphalt or suspended slabs without engineering approval ✔ Electrical: 100-140VAC, 60 Hz, single phase for onboard charging (standard outlet) ✔ Anchoring: None required. The columns are mobile and free-standing ✔ Bay Space: Allow for the vehicle plus a 44.1″ column at each lifting point (4 columns, 72,000 lb total) ✔ Column Spacing: Up to 32 ft 8 in (32′ 8″) between columns ✔ Operating Temperature: 41-104 °F (5-40 °C)
*These columns are free-standing and are not anchored to the floor, but the slab still carries the full load. iDEAL specifies level concrete at a minimum of 4.5″ thickness and 3,000 PSI compressive strength, indoors only, with no asphalt or suspended slabs without engineering approval. Operating on inadequate concrete may result in serious injury or death. It is the customer’s responsibility to verify concrete thickness and strength prior to purchase and use.
iDEAL MSC-18K-X-472 Mobile Column Lifts (4-Column Set) Specifications |
|
|---|---|
| Manufacturer | iDEAL |
| Model | MSC-18K-X-472 |
| Configuration | 4 mobile columns |
| Capacity | 18,000 lb per column (72,000 lb per 4-column set) |
| ALI Certification | Yes |
| Power, Operation | 24V DC battery, on-board chargers |
| Charging Power | 100–140VAC, 60 Hz, single phase to 24V DC |
| Batteries (per column) | Two 12V sealed deep-cycle Group 31, 105Ah each (not included) |
| Lift Height | 67.1 in |
| Rise Time | ~100 s |
| Column Height | Min 88.6 in, Max 155.5 in |
| Column Width | 44.1 in |
| Maximum Distance between Columns | 32′ 8″ (9.96 m) |
| Fork Adjustable Range | 12.6–22 in |
| Fork Length | 17.9 in |
| Fork-to-Column Clearance | 10 in |
| Control Modes | Individual, Axle, or All columns from any column |
| Communication | Retractable cable reels, PLC + optical encoder sync |

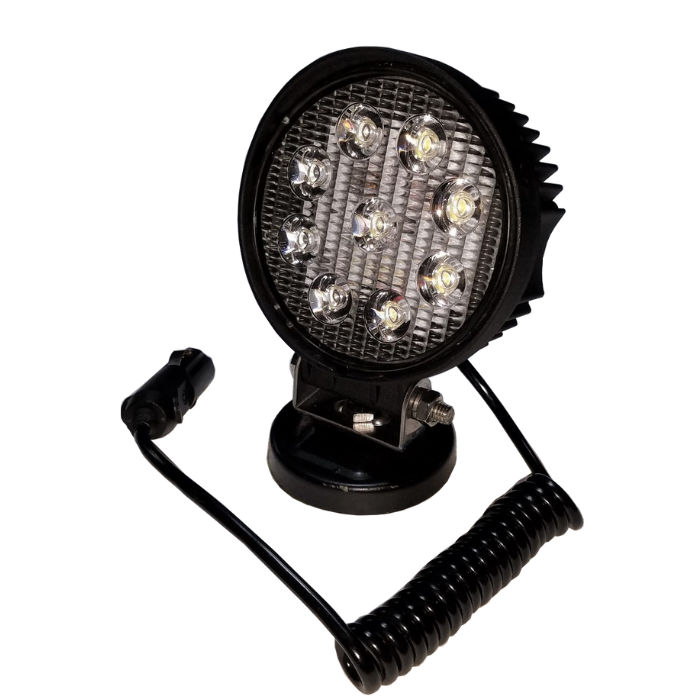

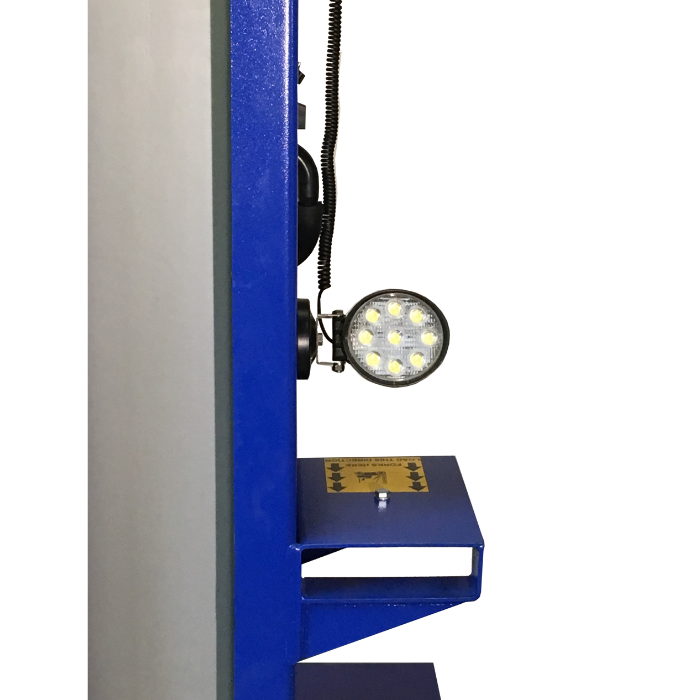

| Lighting | LED work light with magnetic base (included) |
| Environment | Indoors only, recommended 41–104°F |
| Floor Requirement | 3,000 PSI concrete minimum |
| Shipping Weight (set) | ~6,600 lb |
| Typical Pallet Dimensions (set) | 92 in × 96 in × 90 in |
| Included | Four mobile columns with poly casters, LCD master control, retractable comm cables, on-board chargers, LED work light |
| Optional Adapters | Cross Beam MSC18KX-CRSBM, Light Vehicle Adapter Kit MSC18KX-LTVAK, high-rise stands, forklift spacers, ramps |
| Warranty | 5 years structural, 1 year parts (normal use) |
Manual
Click to view the MSC-18K-X-472 Manual
European Price and Ordering Information
Price in EUR: €38255.27. This price has been converted from the original USD price at the ECB euro foreign exchange reference rate 2026-10-26: 1 EUR = 1.1188 USD (USD to EUR rate 0.8938). Product specifications, capacities and dimensions above are reproduced exactly as supplied by the manufacturer; where US imperial units (lb, inches) are shown, please verify measurements before ordering.
Brand: iDEAL | Product type: Mobile Column Lift | Model / SKU: MSC-18K-X-472 | Source product page: https://pitstop-pro.com/products/ideal-ali-certified-72-000-lbs-mobile-four-column-lift-msc-18k-x-472
