Get the Wheels Off Your Parking Lift: the Daytona RAJ5 5,000 lb Rolling Bridge Jack
A four post parking lift holds a car by its own wheels. That is fine for storage and fine for an oil change, and useless the moment you want a wheel off. Brakes, tires, and rotors all need the car supported by something other than the tires it is standing on.
The Daytona RAJ5 is what turns a parking lift into a lift you can actually work on. It rolls along the runways, spans the gap, and raises 5,000 lbs off the deck so an axle comes free while the car stays where it is. The frame adjusts 32.9″ to 60.4″. Daytona’s drawing describes it as a rolling jack for parking lifts; confirm fit with your lift model before ordering.
It runs on shop air at 110 to 150 PSI, so there is no electrical hookup. A mechanical safety lock holds it at the 20.5″ working height, and the jack sits roughly 5″ above the platform when it is down, low enough to leave in place under a parked car.
Buy it with the lift if you can. A parking lift without a rolling jack is a storage rack, and adding the jack later costs a second freight charge. Call a Pit Master Auto lift specialist to spec it. Browse every rolling bridge jack, see all storage lifts, or view the full Daytona lineup.
Benefits of the Daytona RAJ5
Key Features of the Daytona RAJ5
• 5,000 lb capacity: A scissor mechanism raising evenly on both sides, sized for one axle of a passenger car, crossover, or light truck on a parking lift.
• Arm span 32.9″ to 60.4″, base 33.5″ to 45.3″: Taken from the engineer stamped drawing. Measure your runway spacing and confirm fit with your lift model.
• 20.5″ on the lock: The stamped drawing gives a saddle travel of 8.1″ to 20.7″, extending to 9.5″ to 22.1″ with the pad adapters fitted.
• Air operation at 110 to 150 PSI: Pneumatic, with no electrical connection required.
• Base adjusts 33.5″ to 45.3″: The rolling frame extends to suit the runway rails, and 4.7″ rollers carry it along the deck under load.
• Check fit first: Confirm compatibility with your lift model before ordering, especially if your rack is not a Daytona.
| Daytona RAJ5 5,000 lb Rolling Bridge Jack Specifications | |
| Manufacturer | Daytona |
| Model | RAJ5 |
| Type | Air operated rolling bridge jack, scissor mechanism |
| Lifting Capacity | 5,000 lbs (2,268 kg) |
| Fits | Daytona parking lifts (Daytona’s drawing is titled “Rolling Jack for Parking Lift” and names no lift model). Confirm compatibility with your lift model, such as the LFPP9, LFPP10, or LFPP10-XLT, before ordering. |
| Working Height on Lock | 20.5″ |
| Saddle Travel (blueprint) | 8.1″ to 20.7″ (205 to 525 mm), 9.5″ to 22.1″ with pad adapters |
| Height Above Platform | Approximately 5″ when collapsed |
| Frame Width Adjustment | 32.9″ to 60.4″ (835 to 1,535 mm) |
| Base Length Adjustment | 33.5″ to 45.3″ (850 to 1,150 mm) |
| Platform Length | 30.7″ (780 mm) |
| Roller Diameter | 4.7″ (120 mm) |
| Air Pressure Required | 110 to 150 PSI. No electrical hookup required |
| Safety | Mechanical safety lock engaging at 20.5″ working height |
| Shipping Dimensions | 41″ x 26″ x 17″ | 380 lbs |
| Sold | Individually, one jack per unit |
| Warranty | 5-year structural | 2-year cylinders and seal kits | 1-year other defective parts |

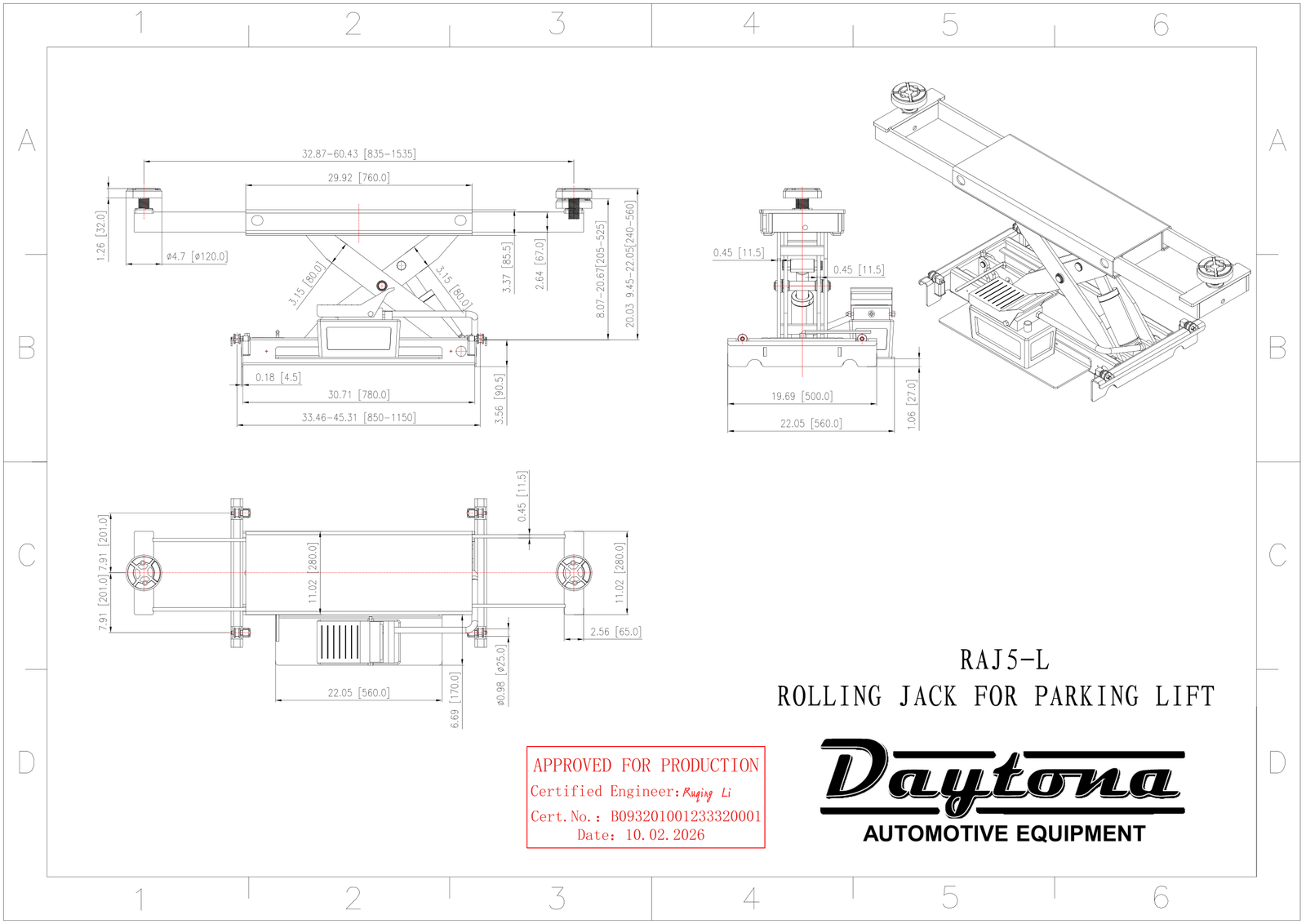

| Blueprint | View the engineer stamped dimensional drawing |
Daytona RAJ5 Frequently Asked Questions
Do I really need one?
If the lift is purely for storage, no. If you intend to do any work on the car while it is up there, yes. A four post keeps the vehicle on its own wheels, so nothing comes off without a rolling jack. Most owners who skip it end up buying one within the year.
Which Daytona jack fits my lift?
Match the jack to the rack, not to the vehicle. The RAJ5 is for the 9,000 and 10,000 lb parking lifts. The RAJ8 is for the 12,000 and 14,000 lb alignment lifts, and the RAJ12 is for the 24,000 lb LFPA24.
Will it fit a parking lift from another brand?
Fit is not guaranteed on other brands. The frame adjusts 32.9″ to 60.4″ at the lifting arms and 33.5″ to 45.3″ at the base (per Daytona’s drawing), so measure your runway spacing and call us before ordering if your rack is not a Daytona.
What air supply does it need?
110 to 150 PSI from a normal shop compressor. There is no electrical connection at all. If your garage has a compressor and a drop near the lift, you have what it needs.
Can I add it to a lift I already own?
Yes. It sits on the runways and rolls into position, so there is nothing to bolt down and nothing to wire. Ordering with the lift only saves a second freight charge.
How does delivery work?
It ships as freight in a 41″ x 26″ x 17″ crate weighing 380 lbs. Compact but dense, so a pallet jack and a level approach usually handles it. If it is going out with a lift, we can coordinate both onto the same delivery.
Ready to upgrade your garage? Talk to a Lift Specialist or explore more options.
European Price and Ordering Information
Price in EUR: €841.08. This price has been converted from the original USD price at the ECB euro foreign exchange reference rate 2026-10-26: 1 EUR = 1.1188 USD (USD to EUR rate 0.8938). Product specifications, capacities and dimensions above are reproduced exactly as supplied by the manufacturer; where US imperial units (lb, inches) are shown, please verify measurements before ordering.
Brand: Daytona Lifts | Product type: Rolling Bridge Jack | Model / SKU: RAJ5 | Source product page: https://pitmasterauto.com/products/daytona-raj5-5-000-lb-rolling-bridge-jack-for-parking-lifts
